(TS7905 – TS7908 – TS7914)
TS7905
TS7900 series switches are a new generation of high-performance core switches for cloud computing, large campus networks, and data centers. This series of products adopts the industry’s advanced hardware CLOS architecture design to provide the industry’s highest switching performance and rich high-end campus network service features. On the basis of providing high-performance L2/L3/L4 wire-speed switching services, it further integrates various network services such as virtualization, and combines multiple high-reliability technologies such as uninterrupted forwarding, graceful restart, and redundancy protection to ensure the longest uninterrupted communication capability of the network. The product design is deeply energy-saving, greatly reduces the energy consumption of equipment, low-carbon and environmental protection, effectively reduces the operation and maintenance cost, and provides a perfect solution for the green and sustainable development of the network.
TS7900 series switches have three models TS7905, TS7908 and TS7914, which can meet the port density and performance requirements of different scale networks.

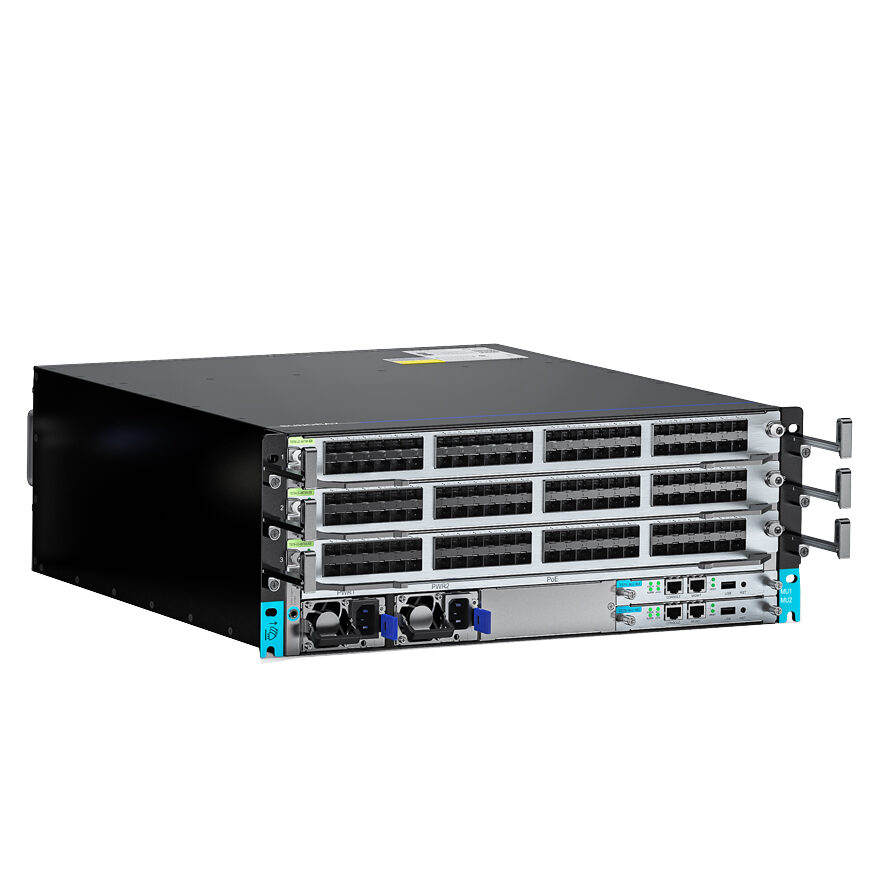

TS7905 Chassis includes 2*Console Board Control slot，3*Service board slots,2 power module slots, 1 fan tray.
Specification
Product Model
TS7905
Slots quantity
Console slots quantity: 2
Service slots quantity: 3 、SFU slots quantity: 2
Switching Capacity and Packet Forwarding Rate
Switching Capacity：53.76Tbps/256Tbps
Packet Forwarding Rate：38400Mpps
Dual Master Control Redundancy
Power M+N backup
Fan system redundancy
Air Duct
Right-in and bank-out air flow fan design and Unmanaged Switch Modes
MAC Layer Switching
Static configuration and dynamically learning、 Check and clear MAC address
Configuring of MAC address aging time、 MAC address filtering function
Access Mode
Fit/FAT mode
Spanning Tree Protocol (STP)
802.1D(STP),802.1W(RSTP),802.1S(MSTP)
BPDU protection, root protection and ring protection
IPv4
Static routing, RIP v1/v2, OSPF、
Policy routing、 VRRP
QoS
Traffic classification of L2/L3/L4 protocol headers、 CAR traffic control、
802.1P/DSCP priority remark、 SP, WRR or SP+WRR、 Traffic supervision and shaping
Power Supply
AC:100V-240V,50Hz±10%
Operating Temperature/Humidity
0°C-40°C;10%-90% non-condensing
Storage temperature/humidity
-20℃-70℃;5%-95% non-condensing
Weight(empty chassis) / Dimensions mm (WxDxH)
15kg / 442x477x175
