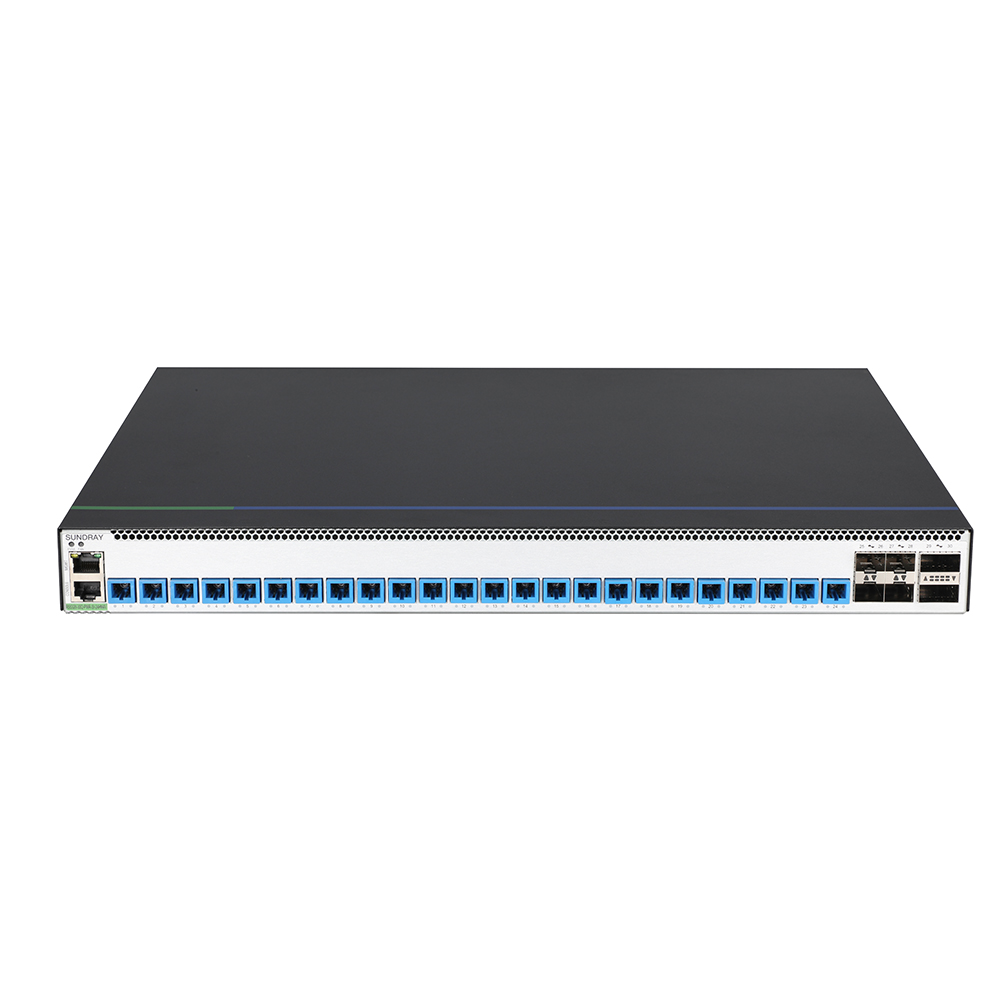

RS5320-30Q-PWR-SI-24HM4V
The RS5320 series PoE switch is power-over-fiber V-Sec switch product that Sundray independently developed; mainly used in all-fiber connection solution scenarios, it supports 1G/2.5G Hybrid Optical interface, supporting IEEE802.3af/at standard, can provide data connection and power supply to AP through hybrid Optical cable, and can support IEEE802.3at standard power supply up to 400m, which can satisfy the demand of remote power supply in education, healthcare, enterprise and other scenarios, Minimalist all-fiber network architecture for optical and electrical integrated operation and maintenance management.
Specification:
Product Model
RS5320-30Q-PWR-SI-24HM4V
Number of Interfaces
24*Line Rate Multi-Rate Ports; 4*10G SFP+ Fiber Ports; 2*40G QSFP+ Fiber Ports
1*Console Port；1*Manage Port
Switching Capacity and Packet Forwarding Rate
Switching Capacity：2.56 Tbps/25.6 Tbps
Packet Forwarding Rate：660 Mpps
PoE Output Standards and PoE Output Power
PoE Output Standards：IEEE 802.3af/at/bt
PoE Output Power：Maximum 60W per Port, Total 520W for the Entire Unit
Work temperature Operating/storage humidity
Work temperature：0 ℃～45 ℃
Storage temperature：-20 ℃～70 ℃
Work Humidity
5%～95% RH (non-condensing)
Access Method
Fat and Thin Integration (Support Switching)
Dimensions (Width x Depth x Height) (mm)
440 x 330 x 44
Boot Methods
Layer 2 Broadcast / Static IP Address / DHCP Option 43 / DNS Domain Name
